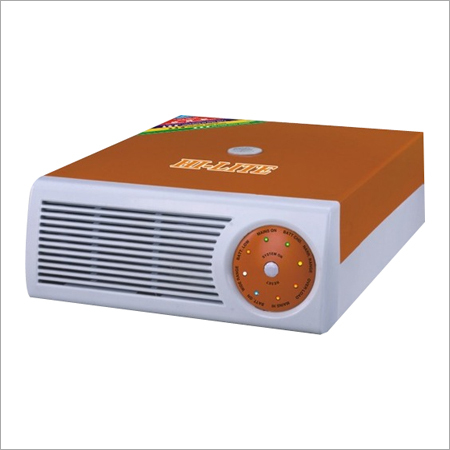

High Frequency Sine Wave Combo UPS

High Frequency Sine Wave Combo UPS
High Frequency Sine Wave Combo UPS
Product Code : UPS-13
Brand Name : RANA ELECTRONICS
Product Description

HI LITE

 UTL HI-LITE is a noiseless high frequency combo system. It is extremely light weight, 810 VA weighs only 2.5 Kg, yet has high computer compatibility. It is a safe UPS as it provides pure sine wave from no load to full load. Like our other combo products, it is also powered by micro digital technology.
AVAILABLE IN
SINGLE PHASE
810 VA & 1260 VA

  • No load shut down

  • Any battery option

  • Auto overload resetting

  • Pure Sine Wave Output

  • Intelligent charger

  • Applications

No load shut down

UTL perfectly understands how important your battery’s backup is to you. Keeping this in mind UTL has integrated the unique feature of no load shutdown in HI-LITE. At the time of power outages this particular feature enables the hi-lite to shut itself down when no load is connected to it and even turn itself back on when any load gets applied. Thus saving your precious battery backup so you can use it at a time when need it the most [Top]

Any battery option

The HI-LITE the house of UTL has the intelligent feature to recognize the type of battery connected to it. May it be an ordinary battery or a branded one, a tubular battery or a sealed one. No matter what the type it auto adjusts the battery’s charging characteristics accordingly. Even those batteries which cease to go over 13.5V after a while of use work flawlessly with UTL’s combo ups. While the ups’s from other brands overcharge such batteries UTL’s HI-LITE on the other hand declares them fully charged at 13.5 volts, thus preventing them from being overcharged. With an option for battery equalization the combo ups from UTL is a complete package. So go ahead and install any battery you like.  [Top]

Auto overload resetting

  UTL’S HI-LITE has the ability to sense the level of load attached to it. When subjected to excessive load the ups enters a stand-by mode in which it keeps on beeping and sensing the load and then turns itself back on when it finds the load to be in its specified level of operation, dismissing the need of manual resetting. If the load is not reduced, the ups then after 8 attempts to turn it self back on undergoes shutdown [Top]

Pure Sine Wave Output

Prevent crashes in computers, weird print outs and glitches in monitors with clean/distortion free pure sine wave output from UTL’s HI-LITE. Now run your inductive appliances without any worries much quieter and cooler similar to how they run on utility supplied electricity.   [Top]

Intelligent charger

 Smart multilevel charging in incorporated in the HI-LITE maintains the battery’s health which in turn yields in longer life of the battery, With very low maintenance. It provides the battery with a constant boost of charging current until its voltage reaches 14.2V and then the float current maintains this voltage above 13V in turn reducing the float current to zero which ultimately results in much enhanced battery life keeping it fully charged simultaneously. [Top]

Applications

  HI-LITE can safely and ideally operate all appliances like Fans, Bulbs, Tube Lights, Stereos, Televisions, VCR s, EPABX, Intercoms, Electronic Type-writers, Bio-medical Instruments and any gadget which requires 220 Volt 50 Hz AC Sine Wave supply. In narrow range it can operate Computers, Printers and allied accessories as well. Special needs can be met on demand

SPECIFICATIONS

INPUT


Power Rating

810 VA, 1260 VA

Voltage Range

Single Phase - 220 V AC

Frequency

50 Hz

OUTPUT


Voltage

Single Phase - 220 V

Frequency

50 Hz

Wave Form

Sine Wave

OVERALL


Voltage controll type

Micro Digital Feedback Technology

Overload Capacity

102% cont, 300% for 30 ms

Battery Charging

SMPS Charging Technology

Battery Charging Rate

Selectable 7/ 10.5% of battery capacity

Audio Allarm

Buzzer For Overload, Low Battery & Mode Change

Inverter Efficiency

80 % Typical











"We are providing our products in North Indian regions only"
