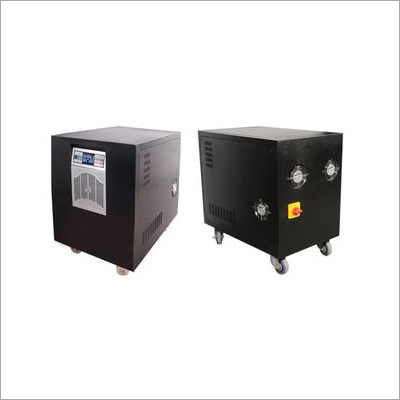

Heavy Lifter 5KVA Inverter

Heavy Lifter 5KVA Inverter
Heavy Lifter 5KVA Inverter
Product Code : CI-01
Brand Name : RANA ELECTRONICS
Product Description

We are an illustrious manufacturer and supplier of supreme quality Heavy Lifter 5KVA Inverter since two decades. This inverter provides pure sine waves to allow optimum backup to household equipment such as lights, fans, washing machines and refrigerators. The provided inverter is manufactured under the observation of our deft professionals using quality-tested components and advanced techniques. Also, we are offering this Heavy Lifter 5KVA Inverter at marginal price for our clients.

Features:

  • Compact in design
  • Easy installation
  • Low maintenance
  • Longer service life















UTL’S 5 KVA commercial inverter belongs to the heavy lifter line of inverters. This inverter produces a pure sine wave output which is as refined as utility supplied electricity; the 5 KVA Heavy Lifter is totally fit for all commercial applications may it be running air conditioners, computer servers or even industrial printers and medical equipments. being PFC based this inverter consumes upto 40% less power thus delivering its user with a saving that is almost equal to its original cost, within a few years of use.
The 5 KVA Heavy Lifter from the house of UTL is a complete power backup system that lets users run their expensive and sophisticated equipment without any hassles.
AVAILABLE IN

  • SINGLE IN SINGLE OUT
  • THREE IN ONE OUT
  • THREE IN THREE OUT
  •     Pure Sine Wave Output
  •     Battery Health for longer life
  •     Any Battery Option
  •     Auto Overload Re-setting
Applications

Pure Sine Wave Output
 UTL’s HeavyLifter is an Inverter with a built-in charger this helps it to provide a Pure Sine Wave Output thus making UTL’s HeavyLifter totally fit for running heavy loads like ACs, Industrial Motors, Pumps at gas stations etc. Underneath its hood the all the processes in the HeavyLifter are controlled by a micro controller, being powered by micro digital technology the HeavyLifter is highly efficient, extremely reliable and has a longer life span. [Top]
Battery Health for longer life
 The  HeavyLifter feeds the battery installed to it a constant boost charging current until its voltage reaches 14.2V and the float current (which is very close to zero) then maintains this voltage above 13V. Thus reducing the float current ( flowing for the longest period during the entire process) to zero, ultimately resulting in much enhanced battery life keeping it fully charged simultaneously. [Top]
Any Battery Option
 The HeavyLifter from the house of UTL has the intelligent feature to recognize the type of battery connected to it. May it be an ordinary battery or a branded one, a tubular battery or a sealed one. No matter what the type it auto adjusts the battery’s charging characteristics accordingly. Even those batteries which cease to go over 13.5V after a while of use work flawlessly with UTL’s HeavyLifter. While the inverters from other brands overcharge such batteries UTL’s HeavyLifter on the other hand declares them fully charged at 13.5 volts, thus preventing them from being overcharged. With an option for battery equalization the HeavyLifter from UTL is a complete package. [Top]
Auto Overload Re-setting
 UTL’S HeavyLifter has the ability to sense the level of load attached to it. When subjected to excessive load the ups enters a stand-by mode in which it keeps on beeping and sensing the load and then turns itself back on when it finds the load to be in its specified level of operation, dismissing the need of manual resetting by the user. If the load is not reduced, the inverter then after 8 attempts to turn itself back on undergoes shutdown. [Top]
Applications

 UTL’s HeavyLifter can safely and ideally operate all appliances like ACs, Heavy Motors, Pumps at petrol station addition to other common load like Fans, Bulbs, Tube Lights, Stereos, Televisions, VCRs, Photo-Copiers, EPABX, Intercoms, Electronic Type-writers, Water Coolers,. Even Bio-medical Instruments and any gadget which requires 220 Volt 50 Hz AC Sine Wave supply. Any other Special need can be met on demand.
 SPECIFICATIONS

INPUT
  • Power Rating    5 KVA. 7.5 KVA, 10 KVA
  • Voltage Range    Single Phase - 230 V + 20 %
  • Frequency    50 Hz + 5%
  • Input Power Factor    > 0.9
  • Charger Tpology    BUCK-IGBT
  • OUTPUT
  • Voltage    Single Phase - 230 V + 1 %
  • Frequency    50 Hz + 0.05%
  • Wave Form    Pure Sine Wave
  • Transient Response    <8(10%~90% Linear Load)
  • Voltage Harmonic    < 3 % (Linear load)
  • Overload Capacity    110% 30 sec, 111 to 150% : 18 sec, >150% :1 sec
  • Crest Factor    3:1
  • DISPLAY
  • 7 Segment    (OPTIONAL)
  • Lcd Meter    Output (Voltage,Frequency& Current) # DC Voltage # Charging and Discharging Current
  • Touch Screen    Touch screen controls, check various parameters via touch screen display (optional)
  • INTERFACE
  • Db9    RS232 (Optional)
  • OVERALL
  • Efficiency (AC-AC)    > 85**(FULL LOAD)
  • Transfer time    0 ms
  • Temperature    0 ~ 45 `C
  • Humidity    5-95 %(Non -Condensed)
